Surface Recombination

The surface also plays an important role in recombination. Typically the surfaces complicate the measurement of the bulk lifetime. Recombination at the surfaces is typically described by a surface lifetime τs, which includes the fundamental decay mode but ignores higher decay modes. τs is a function of the surface recombination velocities S1 and S2, the cell width W and the minority carrier diffusivity D. The precise solution is quite complicated but approximate solutions exist for special cases and are sufficiently accurate for most purposes 1.

The simplified formulas given below can be used for transient measurements when the effective lifetime is much greater than the transient surface lifetime (). The more exact expression 2 3in transient measurements that works in all cases is:

$$ S = \sqrt{D \left(\frac{1}{\tau_{eff}}- \frac{1}{\tau_b}\right)} \tan  \left[\frac{W}{2} \sqrt{\frac{1}{D}\left(\frac{1}{\tau_{eff}}- \frac{1}{\tau_b}\right)}\right]$$

For quasi-steady-state measurements, the formulas are accurate if .


There is a list of approximate solutions for several important cases below:

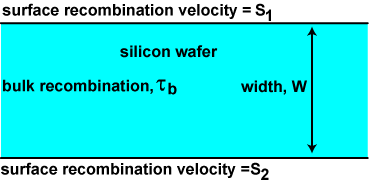

Silicon wafer with a thickness of W

The surfaces are identical so S = S1 = S2.

One surface is perfectly passivated so S2 = 0.

Both surfaces are perfectly passivated so S1 = S2 = 0.

Both surface have high recombination so S1 and S2 are large.

One surface has a high recombination and the other has a low recombination so S1 = 0 and S2 = ∞


Effective Lifetime

The combination of the effects of surface and bulk recombination give the effective lifetime of carriers τeff within a sample.

For many measurements, it is possible to reduce surface recombination of the surfaces to a low enough value so that τb ≫ τ eff. Alternatively, if τb is sufficiently high the lifetime measurement is completely dominated by the surfaces and τs ≫ τeff. An accurate measurement of surface recombination is then possible.

Effective Lifetime Calculator


The second surface has:
The same surface recombination velocity as the first surface
Very low surface recombination velocity
